1 x 8 |
1 x 10 |
1 x 12 |
1 x 14 |
1 x 16 |
1 x 18 |
1 x 20 |
| Objednací číslo | 8108 | 8110 | 8112 | 8114 | 8116 | 8118 | 8120 |
| Hmotnost | 3,60 kg | 4,40 kg | 6,20 kg | 7,40 kg | 8,90 kg | 10,00 kg | 12,20 kg |

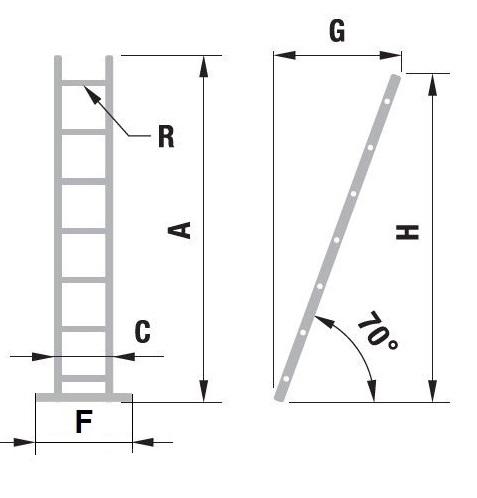

| A - výška | 2,41 m | 2,97 m | 3,54 m | 4,10 m | 4,67 m | 5,24 m | 5,81 m |
| C - šířka | 348 mm | 348 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| F - délka stabilizátoru | - | - | 800 mm | 850 mm | 900 mm | 950 mm | 1000 mm |
| G | 0,88 m | 1,07 m | 1,26 m | 1,46 m | 1,66 m | 1,86 m | 2,06 m |
| H | 2,28 m | 2,80 m | 3,34 m | 3,87 m | 4,40 m | 4,94 m | 5,63 m |
| Detail | Detail | Detail | Detail | Detail | Detail | Detail | |
